Vector Optics - Riflescope Forester JR. 1-4x24 - Black - SCOC-28
Vector Optics - Riflescope Forester JR. 1-4x24 - Black - SCOC-28

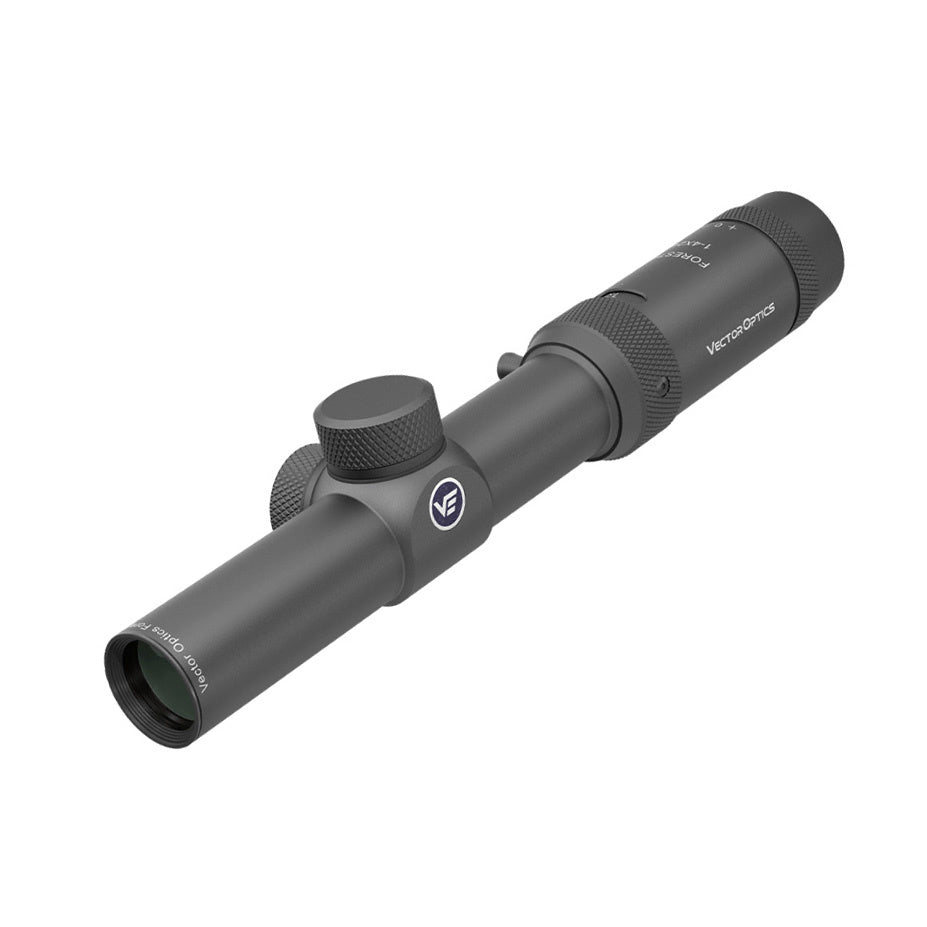

The Vector Optics Forester JR 1-4x24 riflescope is a compact model with variable magnification. The monotube design is made of 6061-T6 aluminum and fits into a standard 30mm tube. The VFD-3 reticle is located in the background, so the reticle scale remains constant despite changing magnification.
Bolt-on turrets with a mottled surface offer tool-free zero resetting. The knobs can be adjusted in 1/2 MOA increments, with a range of +/-50 MOA both vertically and horizontally. With each twist, a click can be heard and felt, allowing you to comfortably adjust the scope without taking your eyes off the target. The quick-focus eyepiece is equipped with a +/-2 diopter adjustment.
The optics are multi-coated (FMC), and the parallax is fixed at 50 yards. The Forester JR features a large field of view - from 22.3 meters to 7.2 meters at 100 meters. The eye relief ranges from 110 to 90 mm. The body is resistant to shock and rain or accidental splashing (IPX4). Nitrogen filling protects the lenses from fogging.
The scope comes with two-piece Vector Optics SCTM-22 mounting rings with a diameter of 30 mm and a medium profile (25.4 mm). Made of 6061-T6 aluminum, the rings are compatible with Picatinny/Weaver rails and attach with Torx screws - four for each ring. When the scope is not in use, it's a good idea to store it in a protective neoprene scope pouch.
Features:
- Variable focal length running scope with up to 4x magnification
- Compact design with a tube diameter of 30 mm
- VFD-3 reticle in the second focal plane
- Vertically and horizontally adjustable +/- 50 MOA by 1/2 MOA per click
- Fixed parallax set at a distance of 45 meters (50 yards)
- FMC-coated optics with enlarged field of view
- Body made of 6061-T6 aluminum, nitrogen-filled, IPX4 resistance
- Diopter adjustment +/-2 D with fast focusing
- Covered turrets with per-click adjustment
- Zero-reset adjustment for quick resetting
- Picatinny/Weaver mounting rings included
| Technical specifications | |
|---|---|
| Magnification | 1-4x |
| Lens diameter | 24 mm |
| Diameter of the eye lens | 33 mm |
| Eye lens length | 80 mm |
| Tube diameter | 30 mm |
| Total length | 260 mm (10.2″) |
| Field of view | 22,3-7,2 m |
| Output pupil | 24-6 mm |
| Distance from the eye | 110-90 mm (4.3-3.5″) |
| Aiming reticle | VFD-3 (SFP) |
| Vertical adjustment range | 100 MOA |
| Horizontal adjustment range | 100 MOA |
| Parallax | 50 yards (fixed) |
| Tube material | Aluminum 6061-T6 |
| Glass coating | FMC |
| Waterproof class | IPX4 |
| Diopter adjustment | +/- 2 |
| Weight | 400 g |
| Color | Black |
Kit components:
- Two-piece 30mm, medium, Picatinny/Weaver mount
- Lens cover connected by rubber band
- Flip-up lens cover
- Microfiber cloth
- Owner's manual
