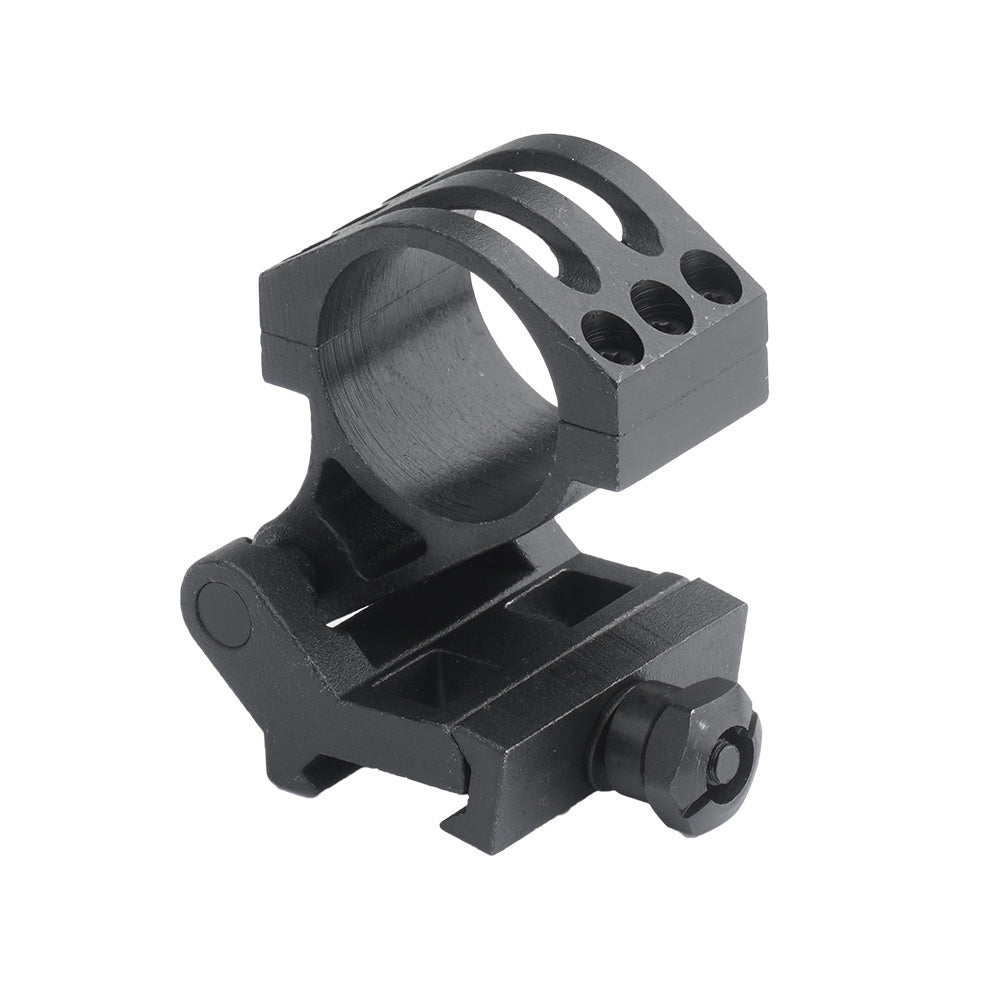

Vector Optics - Flip Steel Mount - 30 mm - Picatinny - SCSR-08
€46,57
Prodajna cijena
€46,57
Redovna cijena
Steel Flip to Side mount for a magnifier with 30 mm tube diameter. Equipped with a spring lock with a button and Picatinny mounting. Elevation angle 90°. The mounting ring is secured with 6 screws, and the rail mounting is locked with a single screw and does not take up too much space. The assembly is covered with a black, matte finish, protecting it from corrosion.
Features:- Flip to Side mount
- Adjusted to enlargers with a tube diameter of 30 mm
- Sturdy steel construction with black coating
- Picatinny rail mount, single screw lock
- Handle on spring lock
- 90° elevation angle
- Ring secured with 6 screws
| Technical data | |
|---|---|
| Tube diameter | 30 mm |
| Rise angle | 90° |
| Overall length | 40 mm |
| Total height | 61 mm |
| Installation length | 32 mm |
| Ring outer diameter | 40 mm |
| Ring width | 25.4 mm |
| Aim Point Height | 38 mm |
| Ring lock | 6 screws |
| Material | Steel |
| Weight | 210 g |
| Compatibility | 1913 Picatinny 21 mm |
| Mounting length | 1 screw |
| Color | Matte Black |
