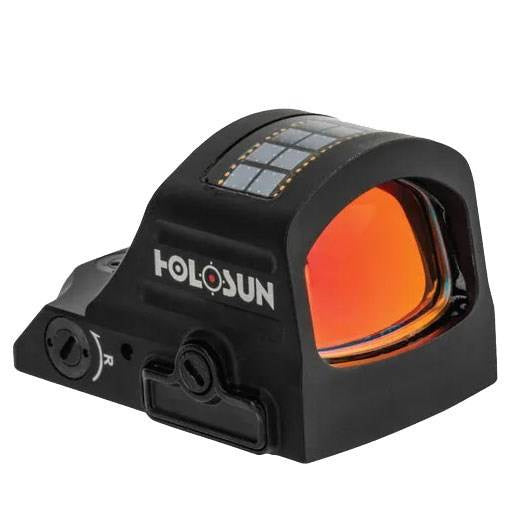

Primary Arms by Holosun - Kolimator HS507C-X2 - ACSS Vulcan
Primary Arms by Holosun Micro Red Dot HS507C-GR X2 is a compact collimator sight for small arms, equipped with many modern features. The Solar Failsafe power supply system ensures reliable operation even in harsh conditions, and the Shake Awake battery saving system allows for an extended operating time of up to 50,000 hours. The X2 version features an upgraded horizontal button layout that is much more convenient and user-friendly. The Lock Mode button lock protects against accidental changes to settings, giving you even more control over the device.
The HS507C-GR X2 collimator has a body made of 7075 aluminum, using a precision milling method. This makes the device lightweight, weighing just 42 grams, yet durable. The collimator is mounted on a standard RMR base, making it easy to install on small arms. The X2 version uses a horizontal button layout, which has won the approval of most users, as well as Lock Mode, which protects against accidental changes in settings. The device meets the high standards of IP67 protection, which means it is resistant to weather conditions and short-term immersion in water. The body of the collimator is covered with a layer of hard-anodized aluminum, which increases resistance to scratches and abrasion.
The Primary Arms by Holosun HE507K-X2 pistol collimator uses the innovative ACSS Vulcan targeting system. Instead of the traditional red dot, the ACSS Vulcan system uses an inverted V-shaped mark that allows quick and precise aiming at longer distances. In addition to this, the system is supported by a large off-swivel circle that helps to quickly position the chevron in the center of the target. If the aiming point is lost, the edges of the lens display the outline of the circle, which helps to apply corrections and return to the desired target. The collimator's lenses are coated with multi-layer anti-reflective coatings, ensuring a clear and sharp image without parallax error. The device is also resistant to shock, weapon recoil and harsh weather conditions.
Features :- ACSS Vulcan sighting reticle
- Wider field of view than closed sights
- Advanced LED technology that features low power consumption, thus providing up to 50,000 hours of operation on a single battery
- Basing the system on a single diode does not affect zeroing
- Operates in automatic (default) or manual mode
- Built-in solar cell allows operation even with a discharged battery
- Light sensor function that adjusts the intensity of the spot according to the light
- Durable lens with advanced multi-layer coatings
- No parallax phenomenon
- Motion sensor to wake up the device from sleep mode
- Memory function of the last used aiming mark and its intensity
- Low battery indication (target mark starts flashing slowly)
- Lightweight and durable 7075 aluminum housing
- Waterproof to IP67 standard
| Technical specifications | |
|---|---|
| Objective lens | 23 x 16 mm |
| Type of aiming point | ACSS Vulcan |
| Illumination source | LED |
| Illumination color | Red |
| Distance from the eye | Unlimited |
| Target point position adjustment | 1/2 MOA / one click |
| Parallax | None |
| Coatings on the lens | Yes, multi-coated |
| Magnification | 1x |
| Power supply | Solar cell and CR1632 battery |
| Battery life | up to 50 000 h |
| Operating modes | Automatic and manual |
| Automatic shutdown | Yes, after 10 minutes of inactivity |
| Brightness adjustment | 10 degrees + 2 degrees for night vision |
| Housing material | Aluminum 7075 |
| Housing finish | Hard anodizing |
| Case color | Black |
| Buttons | Two low-profile rubberized buttons on the side of the case |
| Water resistance | IP67 |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Vibration resistance | up to 5000 G |
| Mounting: | RMR |
| Dimensions | 45.7 x 30.5 x 40.5 mm |
| Weight | 42,5 g |
