HPA GATE PULSAR D motor (without ETU) Rev. 2

HPA GATE PULSAR D motor (without ETU) Rev. 2

Engine features:

- close-bolt two-valve motor
- simple design
- Innovative automatic synchronisation of the nozzle movement cycle facilitates calibration
- tight tolerances to eliminate mid-cap syndrome,
- fPS stability in Auto mode,
- Compatible with standard AEG nozzles,

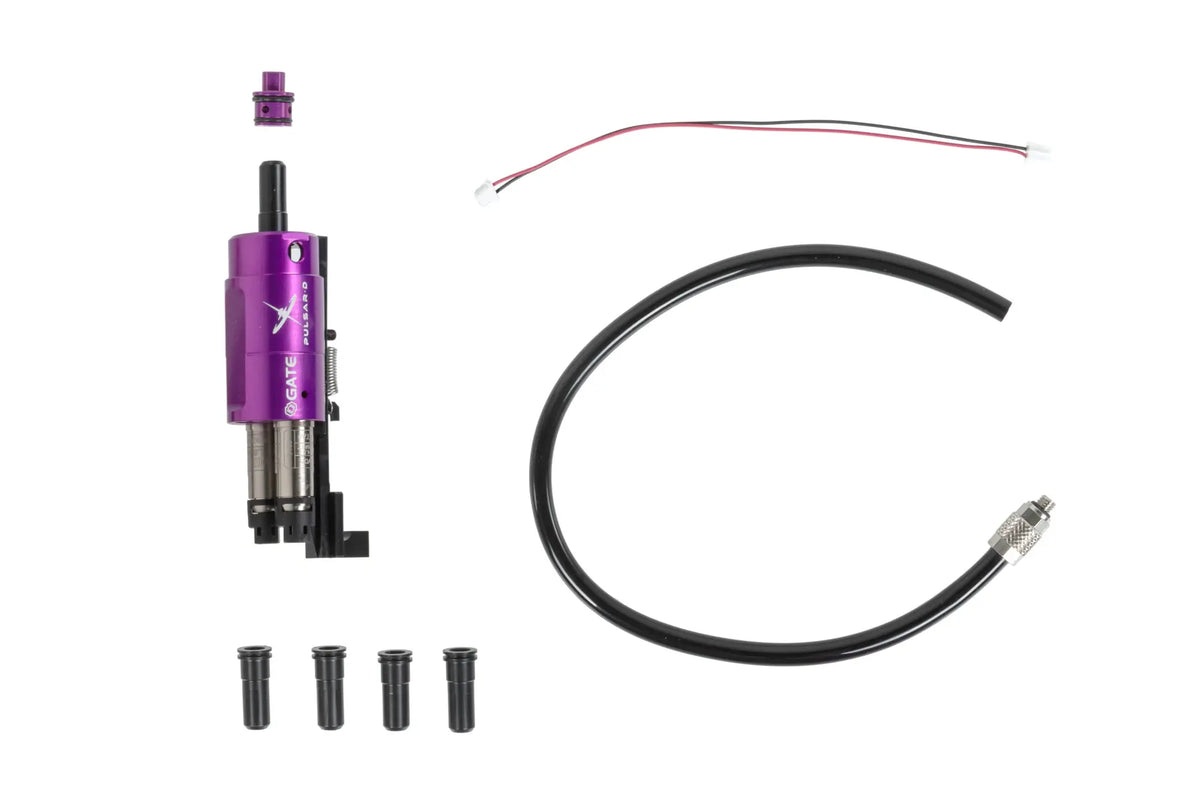

- 5 nozzles of different lengths included : 20.50mm, 20.80mm, 21.15mm, 21.25mm, 21.40mm - e.g. for MP5 or M4/M16,
- Operating pressure: 60-140 PSI
- Air consumption: For 90 PSI and 48 ci/0.8 l cylinder 300 bar/4500 PSI - 0.7 PSI per shot,
- Dimensions: 102 mm x 25.4 mm x 38.5 mm
-Adjustable ROF from 1 to 40 RPS
-Range of discharge velocities: 250 - 650 FPS
- Operating mode : Close-Bolt / Open-Bolt
- operating temperature : min -15°C to max +50°C
