GATE TITAN II Bluetooth® V2 Control System (New HPA Rear Wire)

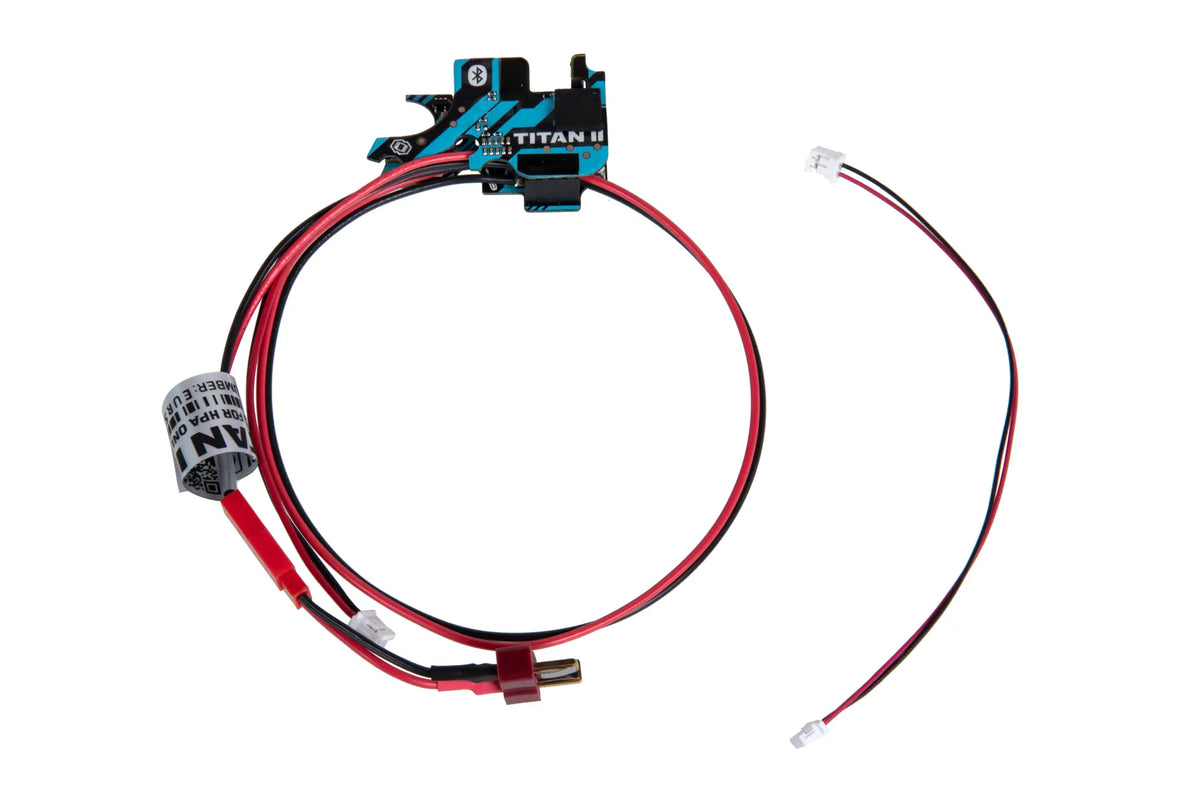

The TITAN II Bluetooth® V2 is an advanced electronic control system developed by GATE to replace the traditional trigger switch (ETU). Equipped with Bluetooth 5.2 technology, it provides direct access to replica settings, telemetry, and the ability to use devices such as smartwatches, STATUS, and other GATE accessories.

Featuring an optical trigger sensor, the TITAN II Bluetooth® V2 allows for "hair-trigger" sensitivity settings with precision down to 50 levels of sensitivity for the first millimeter of trigger movement, retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as a bolt-catch, magazine sensor, BB illumination in the hop-up chamber, and more.

Technical Specifications:

- Nominal Voltage: 3.75-17 VDC

- Nominal Current: 30 A

- Maximum Current Draw without Load: 27 mA

- Current Draw without Load: 100 µA

- Connectivity: Bluetooth® 5.2 Low Energy

- Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm

- Weight: 28.2g

- Operating Temperature Range: Min. -15°C, Max. +50°C

- Relative Humidity: ? 80%

- Version with modified wiring, designed for single and dual valve HPA engines.
