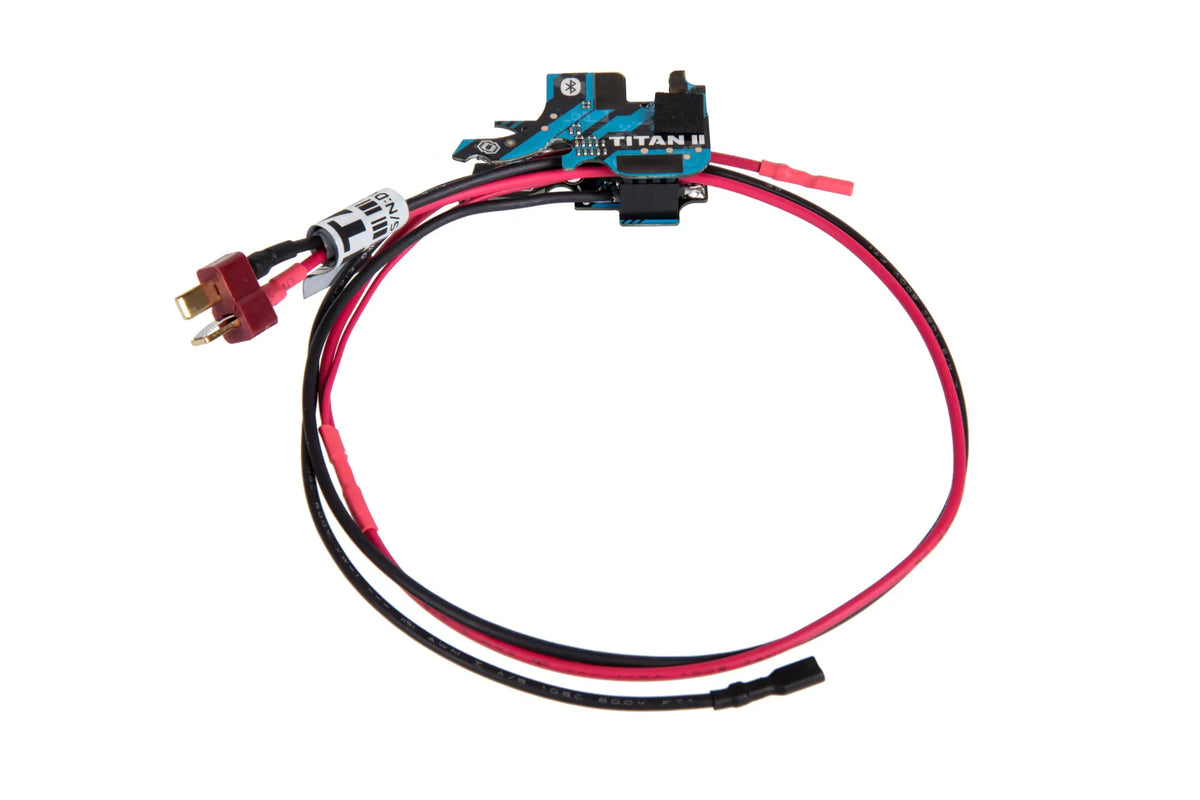

TITAN II Bluetooth® V2 (AEG Rear) Control Unit Set by GATE

TITAN II Bluetooth® V2 (AEG Rear) Control Unit Set

The TITAN II Bluetooth® V2 is a flagship electronic control unit (ECU) that replaces the trigger contacts (ETU) in airsoft AEGs by GATE.  The built-in Bluetooth 5.2 technology provides direct access to airsoft gun settings, telemetry data, and compatibility with GATE's smartwatch, STATUSa, and other devices.

This innovative unit features a gear sensor that not only counts every gear tooth but is also the first in the world to determine the gear rotation direction, offering the most precise control of the cycle in electric airsoft guns. The optical trigger sensor allows for "hair-trigger" adjustments with precision, even down to 50 sensitivity levels in the first millimeter of trigger movement, while retaining the advantages of the trigger sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, BB illumination in the hop-up chamber, and more.

Technical Specifications:

Nominal Voltage: ~3.75- 17 VDC

Nominal Current: 30 A

Maximum No-Load Current: 27 mA

No-Load Current: 100 µA

Connectivity: Bluetooth® 5.2 Low Energy

Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm

Ready Product Weight:  28.2g

Operating Temperature Range: min. -15°C, max. +50°

Relative Operating Humidity: ? 80%

Wiring Version for rear-wired electric replicas.
