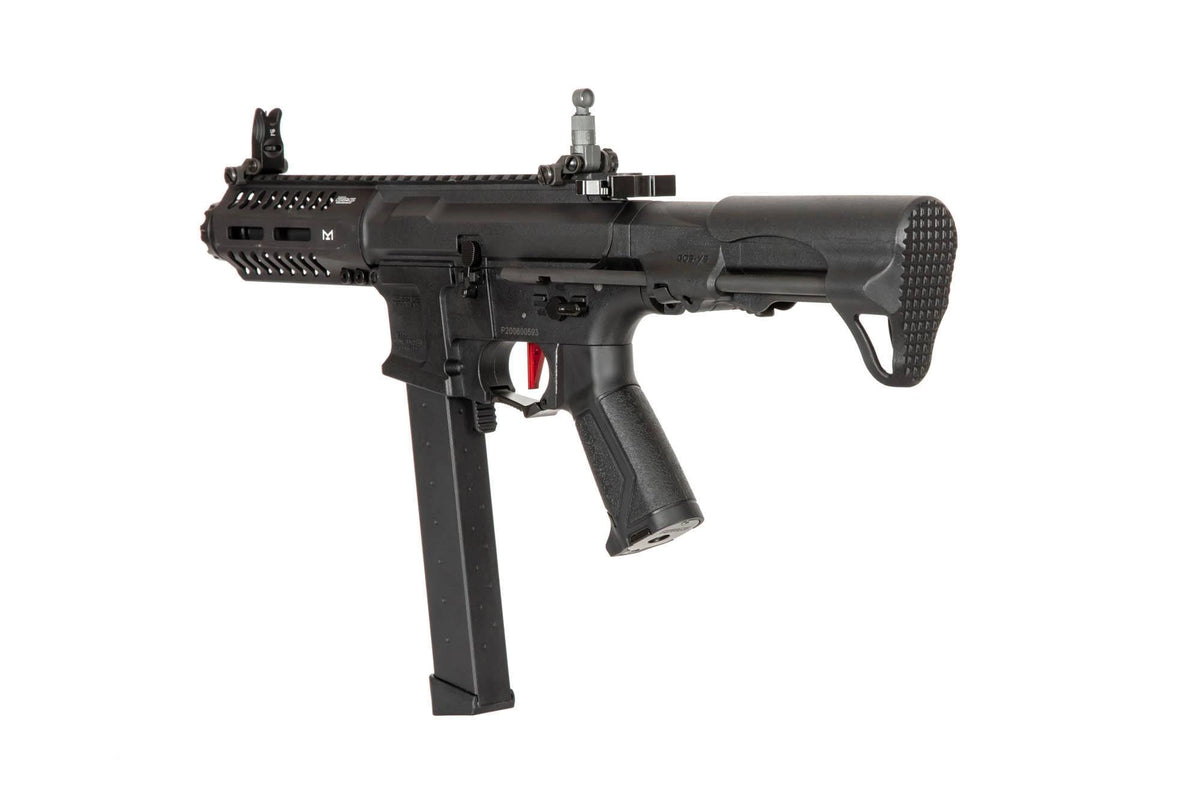

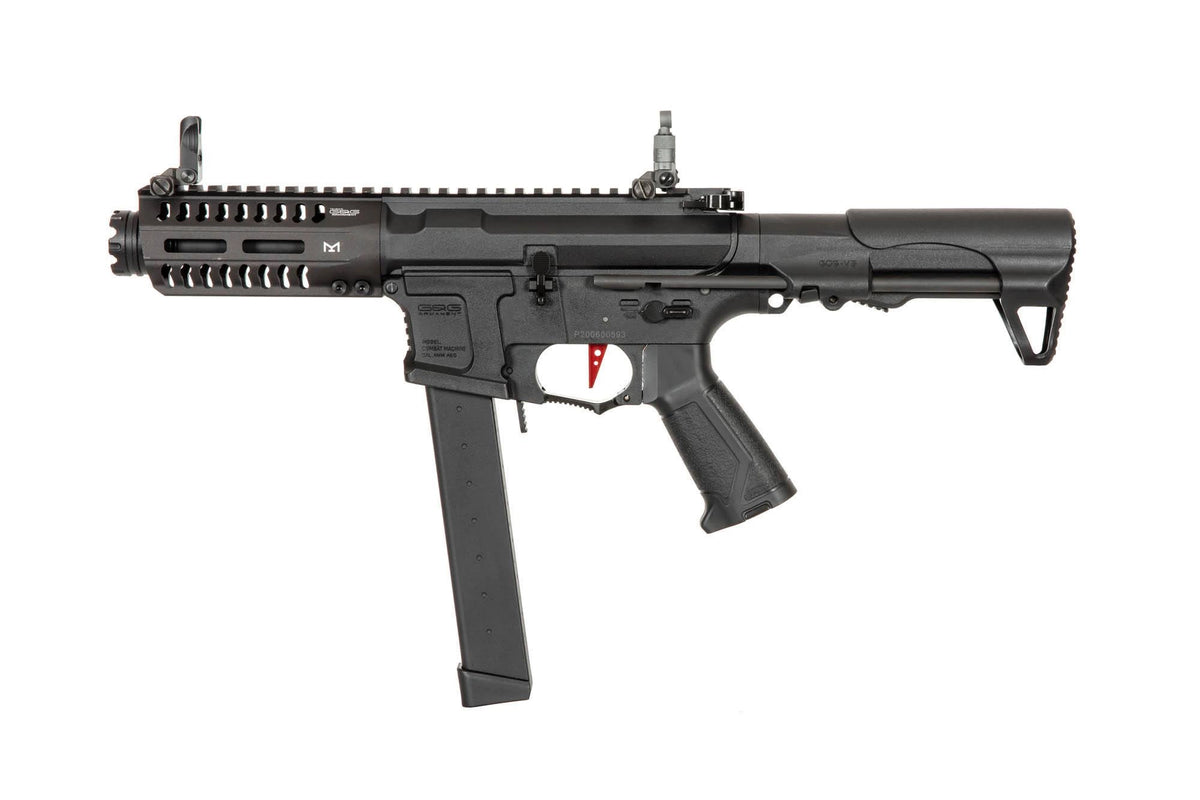

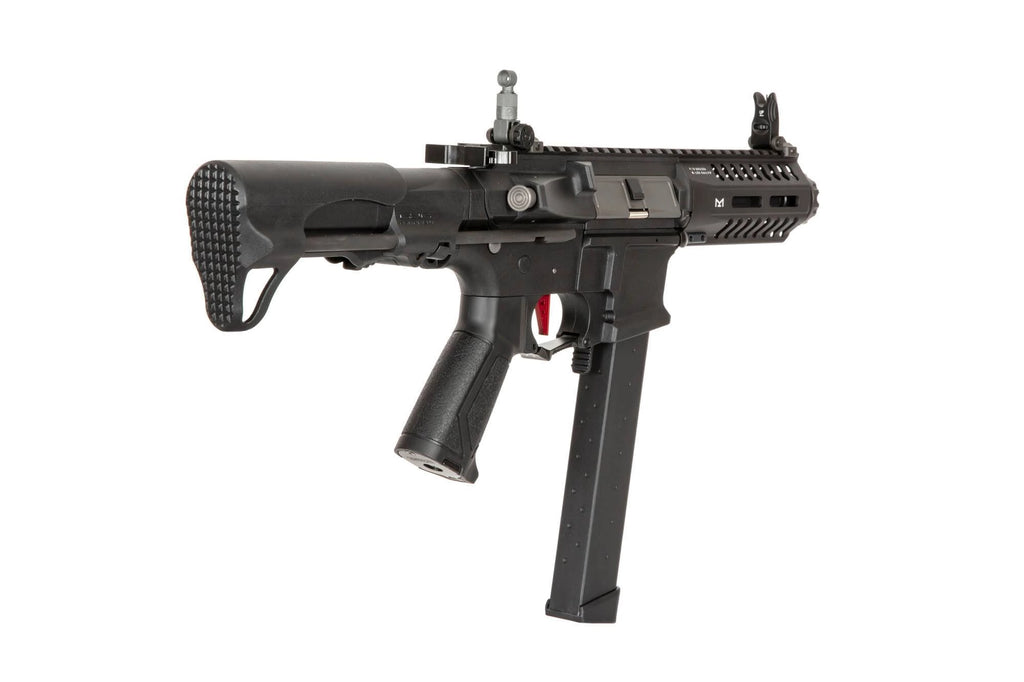

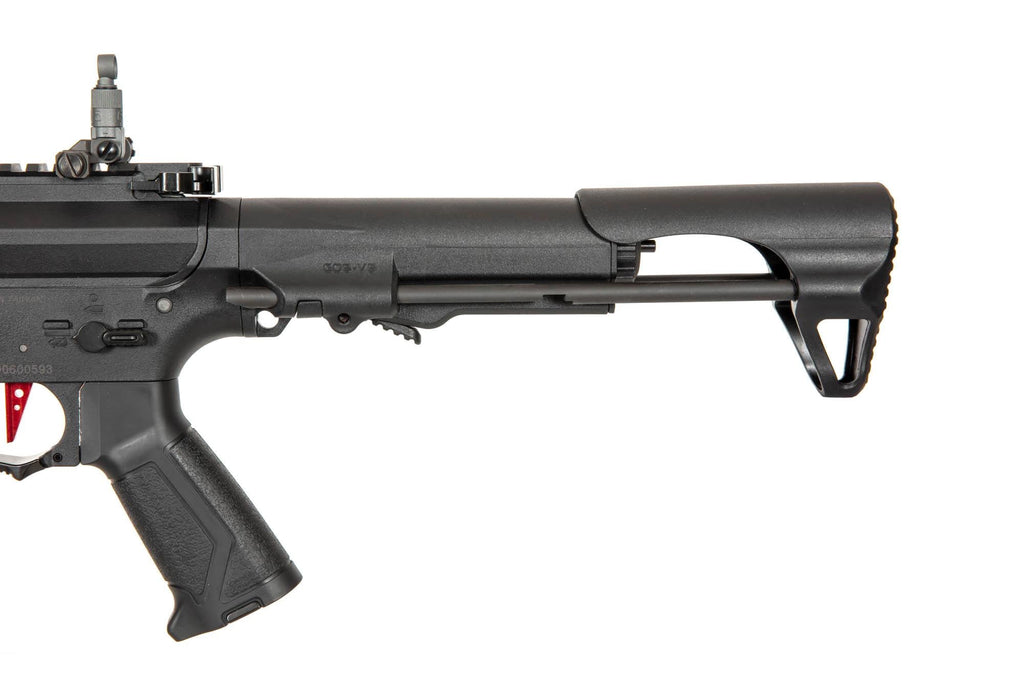

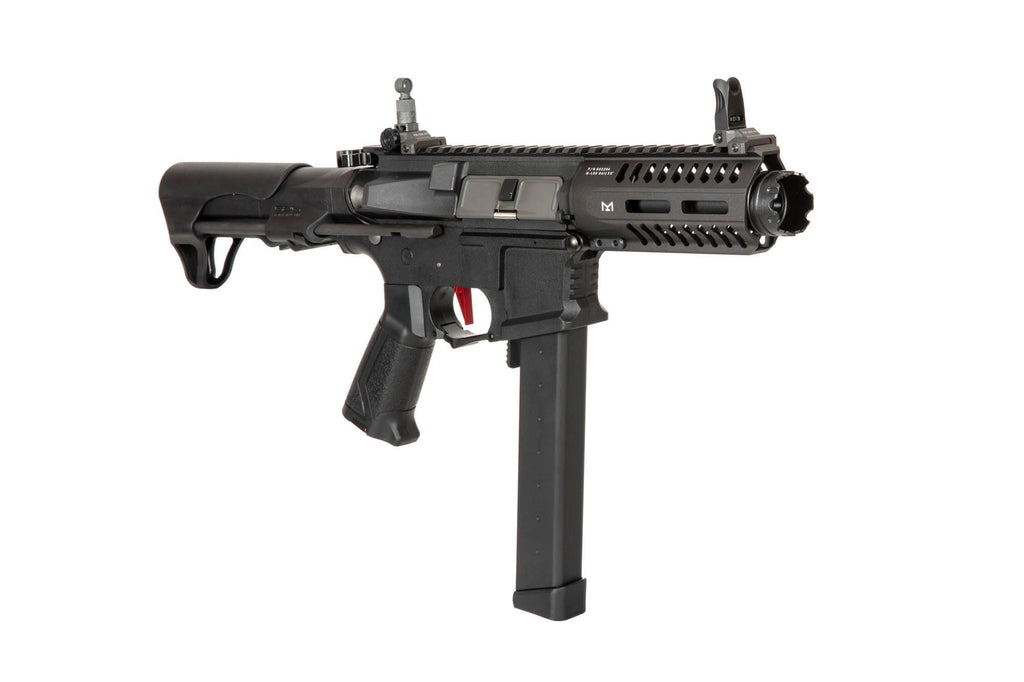

ARP9 CQBR Submachine Gun Replica

€1.847,60

ARP9 CQBR Submachine Gun Replica

You want a modified replica, but tuning is a foreign concept to you? Umbrella Armory comes to the rescue! The replicas offered by this brand are improved models of carbines from well-known manufacturers such as G&G or Krytac. The internal elements of stock replicas are replaced with high-quality, appropriately selected parts from renowned brands. As a result, straight from the box we get a refined, perfectly assembled and thoroughly tested replica, ready for action!

The CQBR replica was based of the ARP9 by G&G, it was made as part of the Combat Machine project, the aim of which was to provide high-quality replicas at a price that can be considered economical. The Combat Machine series replicas are charactrized by the highest quality of workmanship, materials used and the superb craftsmanship of internal elements. The main factor that lowered the price of the replica was the use of high-quality plastic instead of metal for the body. It is worth noting that the body itself is made of glass-fiber reinforced plastic. The outer barrel, the stock guide, hooks and most of the small elements are made of metal.

List of parts installed in the Umbrella Armory workshop:

Gearbox: Reinforced G2 gearbox

Gear set: (~20:1) 18:1 Rocket Dual Sector Gear (Short stroked), 18:1 G&G Spur Gear, 18:1 SHS 10 tooth Bevel Gear.
Engine: G&G Ifirit 25,000 RPM Motor (Long Type)

MOSFET: Perun ETU ++

Bearings: Umbrella Armory 8mm Steel Ball

Main spring: Guarder Steel Tempered Spring (SP160)

Piston head: Lonex POM (Washer Mod)

Piston: Rocket Short Stroked, 15 steel teeth

Trigger: Modified, red Retro Arms CNC "J-Type"

Tappet Plate: modified TO 8.96mm

Tappet Spring: G&G Tappet Spring

Cylinder: G&G 3 / 5th Ported

Cylinder head: Modify steel with double o-ring

Nozzle: VFC POM with O-ring

Hop-up chamber: G&G ARP9 Rotary + Umbrella Armory 3D R-Hop
