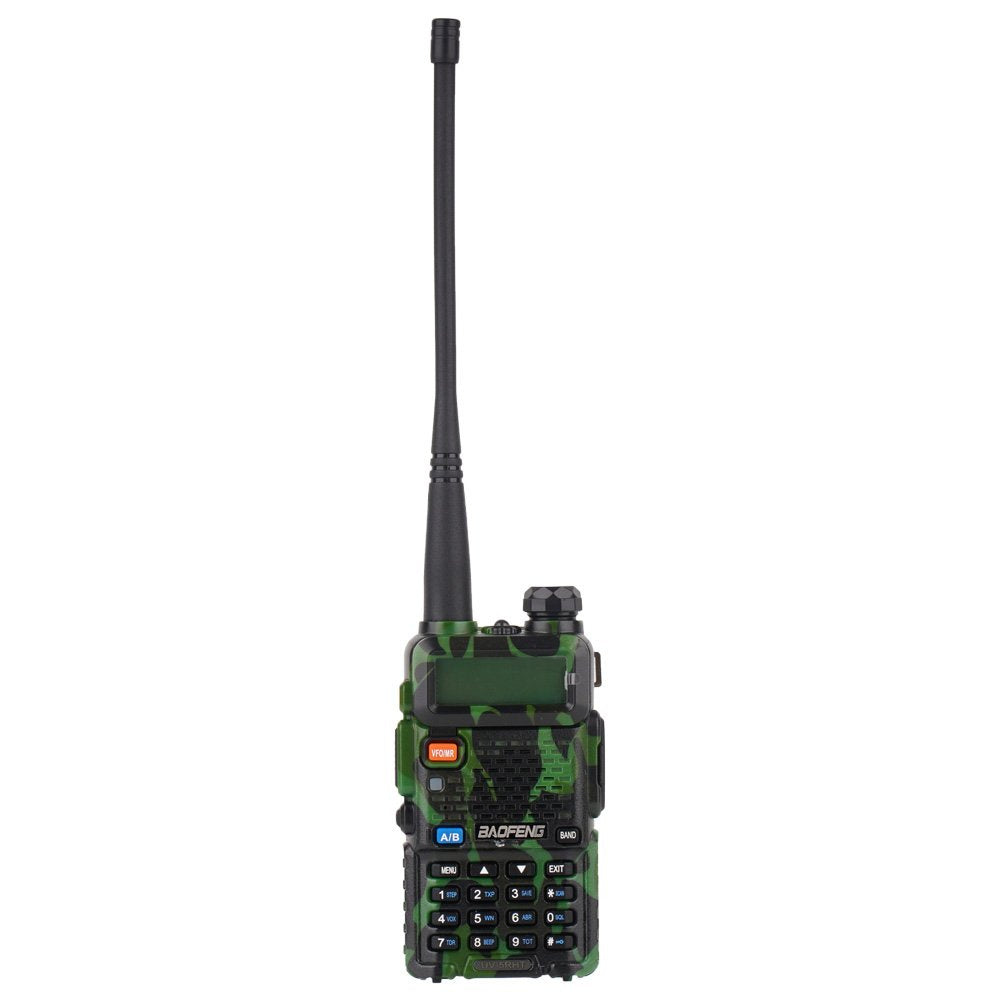

BaoFeng - Handheld Radio UV-5R VHF/UHF Dual-Band PTT - Camouflage - 5 W
BaoFeng - Handheld Radio UV-5R VHF/UHF Dual-Band PTT - Camouflage - 5 W
The BaoFeng UV-5R HT dual-band handheld radio operates in the VHF and UHF bands. It supports communication with a transmit power of up to 5 W and features a full DTMF keypad and a dual LCD display, allowing for direct frequency entry and management of 128 channels stored in memory.
The system allows for programming parameters both directly from the keypad and via a computer. The device features a Dual Watch function, which enables simultaneous monitoring of two different frequencies, and a VOX system for activating transmission via voice commands. CTCSS/DCS codes ensure privacy and minimize interference.
The radio is also equipped with a 1750 Hz tone generator, a built-in LED flashlight, and an FM radio module operating in the 65-108 MHz range. Flexible frequency step selection allows the radio to be tuned to operating conditions. Power is provided by a 7.4 V Li-Ion battery with a capacity of 1800 mAh. The antenna with an SMA-Female connector is unscrewable, allowing it to be removed for transport or replaced with a different model.
The radio features a standard 2-pin Kenwood accessory connector, ensuring compatibility with a wide range of headsets and microphone-speakers. Its compact size and weight allow for convenient carrying in tactical pants pockets or pouches on gear.
Features:
- Dual-band handheld radio with DTMF keypad
- Dual LCD display
- Built-in LED flashlight
- FM radio function in the 65-108 MHz range
- 128 memory channels
- Dual Watch mode
- VOX voice activation
- CTCSS/DCS privacy codes
- Programming via keypad or computer
- 1750 Hz tone signal
- Unscrewable SMA-Female antenna
- Kenwood 2-pin accessory connector
NOTE: In Poland, in accordance with applicable law, only short-range, low-power (up to 500 mW) radios equipped with an integrated antenna may be used in the 446 MHz (PMR) band. A license may be required for other bands and devices. For further details, please contact the Office of Electronic Communications directly.
| Technical Specifications | |
|---|---|
| VHF Frequency Range | 136–174 MHz (TX/RX 144–146 MHz) |
| UHF frequency range | 400-520 MHz (TX/RX 430-440 MHz) |
| FM frequency range | 65–108 MHz (RX) |
| Transmission power | 5 W |
| Number of channels | 128 |
| Power supply | 7.4 V 1800 mAh Li-Ion battery |
| Frequency step | 5/6.25/10/12.5/25 kHz |
| Privacy codes | CTCSS/DCS |
| Antenna connector | SMA-Female |
| Accessory connector | 2-pin Kenwood |
| Dimensions | 109 x 59 x 34 mm |
| Weight | 220 g |
| Color | Black |
