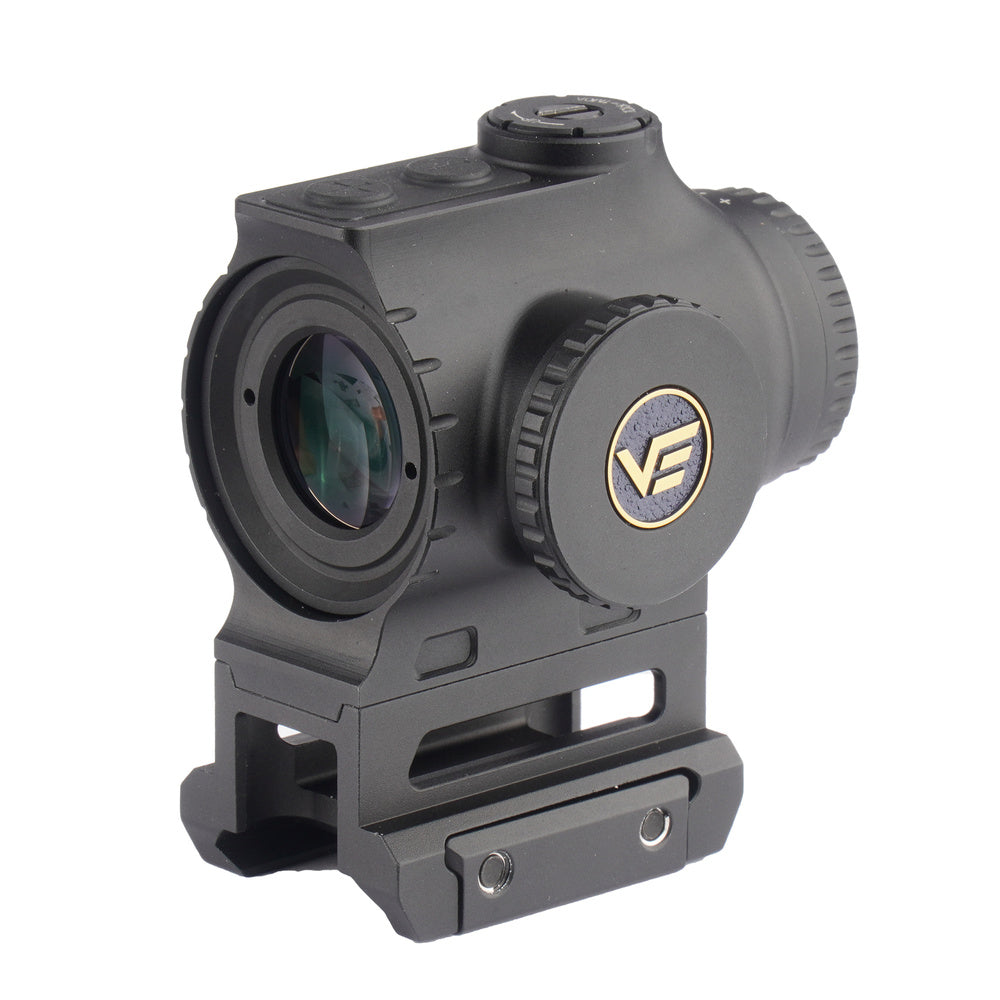

Vector Optics - Prism Sight Paragon 1x18 X-Mini - Black - SCPS-M10
Vector Optics - Prism Sight Paragon 1x18 X-Mini - Black - SCPS-M10
The Paragon X-Mini sight uses diopter-corrected prisms, allowing the user to compensate for a +/- 2 D visual defect. The VEP-CDR sighting reticle used has a point and a circle, which can be further illuminated in red or green. Its design is versatile enough to be used in hunting, sport and tactical shooting and ASG replicas.
This model has 10 levels of aiming point brightness, 8 for daylight and 2 for night vision cooperation. They are adjusted using large buttons located on the top of the unit, and are powered by a single CR2032 battery concealed in a dedicated compartment under the nut on the side. The housing is made of 6061 T6 aluminum. Picatinny rail mounting is elevated.
Features:
- Compact prismatic sight with VEP-CDR sighting reticle
- Diopter correction in the range of +/- 2
- Green or red illuminated aiming point and circle
- Backlight adjustment in 8 levels for daylight mode and two for night vision
- 6061 T6 aluminum construction
- Wide field of view
- Elevated Picatinny rail mount
- Sealed housing that meets IP67 waterproof rating
| Technical specifications | |
|---|---|
| Magnification | 1x |
| Objective diameter | 18 mm |
| Target grid | VEP-CDR |
| Diopter adjustment | +/- 2 |
| Mounting | Picatinny |
| Illumination color | RedGreen |
| Click value | 1 MOA |
| Vertical adjustment range | >100 MOA |
| Horizontal adjustment range | >100 MOA |
| Power supply | CR2032 battery |
| Shock resistance | Up to 1000 G |
| Field of view at 100 m | 26.3 m |
| Distance from the eye | 95 mm |
| Protection class | IP67 |
| Dimensions | 60 x 66 x 31 mm |
| Material | Aluminum 6061 T6 |
| Weight | 178 g |
| Color | Black |
