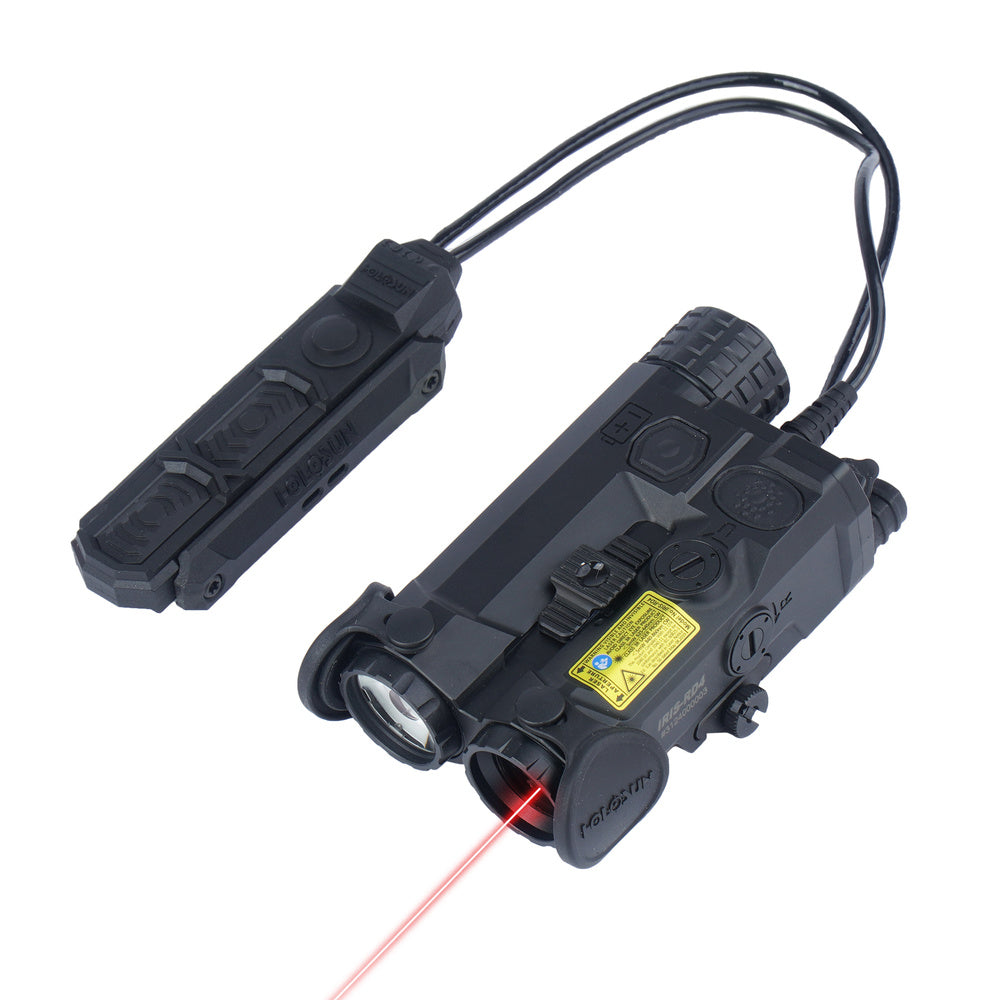

Holosun - Laser Target Indicator Iris-4 with Flashlight - Aluminum - Red - IR - Black - IRIS-RD4
The Iris Laser Target Indicator with 25,000 cd LED flashlight in a compact module form from Holosun. It is mounted on a Picatinny rail with screw-clip jaws. The Iris module has four different illumination sources with two levels of intensity. The user has a white light and IR illuminator, as well as a red laser and IR infrared.
Two Crane ports on the back allow the user to plug in separate control panels that may be more suited to the user's needs. Despite the included equipment, the weight of the device managed to stay below 250 grams. The flashlight has a maximum output of up to 1,000 lumens and a luminosity of up to 25,000 candelas.
The device uses two CR123A batteries for power, the low level of which is indicated by a red LED. Alternatively, an 18650 rechargeable battery can be used for power. The body of the indicator is made of aluminum, where its components exposed to moisture have been sealed to meet the IPX8 standard. For precision, the user can adjust the projected beam both vertically and horizontally.
The red laser with a wavelength of 635 nm is versatile, making it suitable for most situations due to its good contrast with the surroundings. The 850-nm IR laser and illuminator allows you to operate in limited light conditions when using night vision equipment. Various night vision devices will gain additional functionality by being integrated with an additional IR illumination module.
Located in the center of the body, the gently convex button is ergonomic to use. This translates into comfortable use by both right- and left-handed users. In addition, the user receives a gel button on the cable in the package with the indicator. It allows you to place the switch in the most optimal place for each user.
The device, which is IRIS version 4, allows full-fledged operation in all conditions due to its holistic equipment. The user has a wide assortment of lighting and laser pointers for operation in both good and limited light conditions. In addition, the rail with control has a bypass button for light-emitting devices or infrared beams, replacing them with the visible spectrum.
Features:
- Laser target indicator with two beams, flashlight and IR illuminator
- Red laser module for mounting on Picatinny rail
- Can be illuminated simultaneously with IR laser
- Clearly textured rubber-coated button for activation of the unit
- Compact construction made of 7075-T6 aluminum
- Sealed or rubberized points exposed to moisture
- LED to indicate power status
- Mounts to Picatinny rail with clamp-on screw jaws
- Vertical and horizontal beam adjustment
- Powered by two CR123A batteries
- Sealed battery compartment with milled nut
- Rubber cap to cover the emitter
- Gel tactical switch on the cable
- Bypass button for active IR modules
- Comes with softly padded carrying case
| Specifications | |
|---|---|
| Flashlight light source | LED |
| Flashlight light color | White |
| Flashlight light output | Up to 1000 lm |
| Flashlight light output | Up to 25,000 cd |
| Laser wavelength | 635 nm850 nm |
| Illuminator wavelength | 850 nm |
| Beam power | Red laser: Low mode: <1 mW, High mode: <5 mWIR laser: Low mode: <0.4 mW, High mode: <0.7 mWIR illuminator: Low mode: <10 mW, High mode: <60 mW |
| FDA class of laser | Red: Low mode: II, High mode: IIIRIR: Low mode: I, High mode: IIR illuminator: I |
| Beam divergence | Red laser: 0.5 mradIR laser: 0.5 mradIR illuminator: 15-120 mrad |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Housing material | Aluminum 7075-T6 |
| Power supply | 2x CR123A batteryor optionally18650 rechargeable battery |
| Protection class | IPX8 |
| Dimensions | 107 x 58 x 36 mm |
| Weight | 241 g |
| Color | Black |
Kit components:
- Laser target indicator with Iris flashlight
- Gel switch for Picatinny rail with plug
- Microfiber cloth
- Indicator adjustment tool
- User manual
- Soft padded carrying case for carrying the unit
