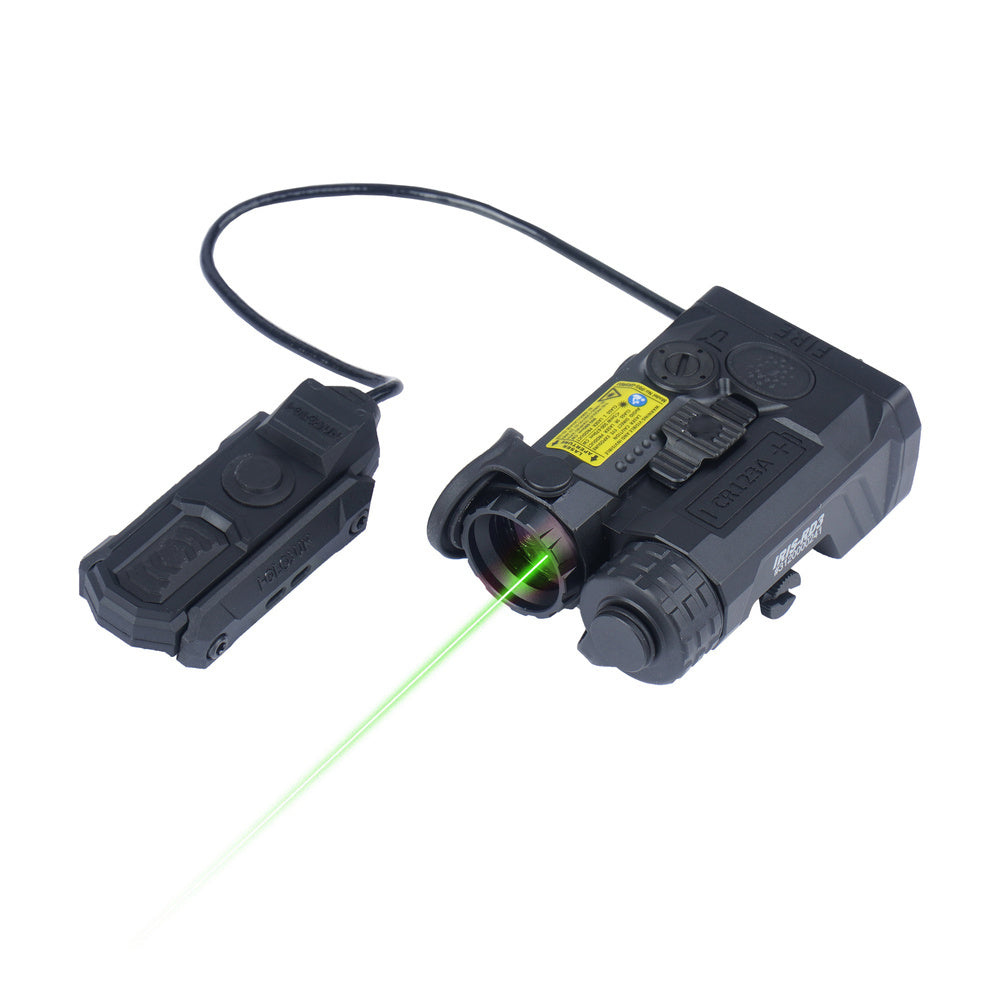

Holosun - Laser Target Indicator Iris-3 - Aluminum - Green - IR - Black - IRIS-GR3
Holosun - Laser Target Indicator Iris-3 - Aluminum - Green - IR - Black - IRIS-GR3
The Iris laser target indicator in the form of a compact module from Holosun. It is mounted on a Picatinny rail with screw-clamp jaws. The Iris module has four illumination modes with two levels of intensity. Basically, the user has a green laser, then an IR laser, then an IR illuminator, and finally a combination of laser and IR illuminator.
The device uses a CR123A battery for power, whose low level is indicated by a red LED. The body of the indicator is made of aluminum, where its components exposed to moisture have been sealed to meet the IPX8 standard. For precision, the user can adjust the projected beam both vertically and horizontally.
The 520 nm green laser is versatile, making it suitable for most situations due to its good contrast with the environment. The 850-nm IR laser and illuminator allows you to operate in limited light conditions when using night vision equipment. Various night vision devices will gain additional functionality by being integrated with an additional IR illumination module.
Located in the center of the body, the gently convex button is ergonomic to use. This translates into convenient use by both right- and left-handed users. In addition, the user receives a gel button on the cable in the package with the indicator. It allows you to place the switch in the most optimal place for each user.
The redesigned design of the device in relation to the second generation allowed to achieve a significantly lower profile and lighter weight. The mode and intensity selector is located on the back of the indicator, which can be easily manipulated with the thumb or another finger. When the emitter is not needed, the user can store or carry it in a softly padded carrying case with dedicated space for each component.
Features:
- Laser target pointer with mode and IR illuminator
- Green laser module for mounting on Picatinny rail
- Simultaneous illumination with IR laser possible
- Four modes of operation with two illumination levels
- Clearly textured rubber-coated button for activation of the unit
- Compact design made of 7075 aluminum
- Sealed or rubberized points exposed to moisture
- LED to indicate power status
- Picatinny rail mounting with clamp-on screw jaws
- Vertical and horizontal beam adjustment
- Powered by a single CR123A battery
- Sealed battery compartment with milled nut
- Rubber cap to cover emitter
- Gel tactical switch on cable
- Comes with softly padded carrying case
| Specifications | |
|---|---|
| Laser wavelength | 520 nm850 nm |
| Illuminator wavelength | 850 nm |
| Beam power | Green laser: Low mode: <1 mW, High mode: <5 mWIR laser: Low mode: <0.4 mW, High mode: <0.7 mWIR illuminator: Low mode: <10 mW, High mode: <60 mW |
| FDA class of laser | Green: Low mode: II, High mode: IIIRIR: Low mode: I, High mode: IIR illuminator: I |
| Beam divergence | Green laser: 0.5 mradIR laser: 0.5 mradIR illuminator: 15-120 mrad |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Housing material | Aluminum 7075-T6 |
| Power supply | CR123A |
| Protection class | IPX8 |
| Dimensions | 80 x 50 x 34 mm |
| Weight (without batteries) | 181 g |
| Color | Black |
Kit components:
- Iris laser target indicator
- Gel switch for Picatinny rail with plug
- Microfiber cloth
- Indicator adjustment tool
- Owner's manual
- Soft padded carrying case for carrying the unit
