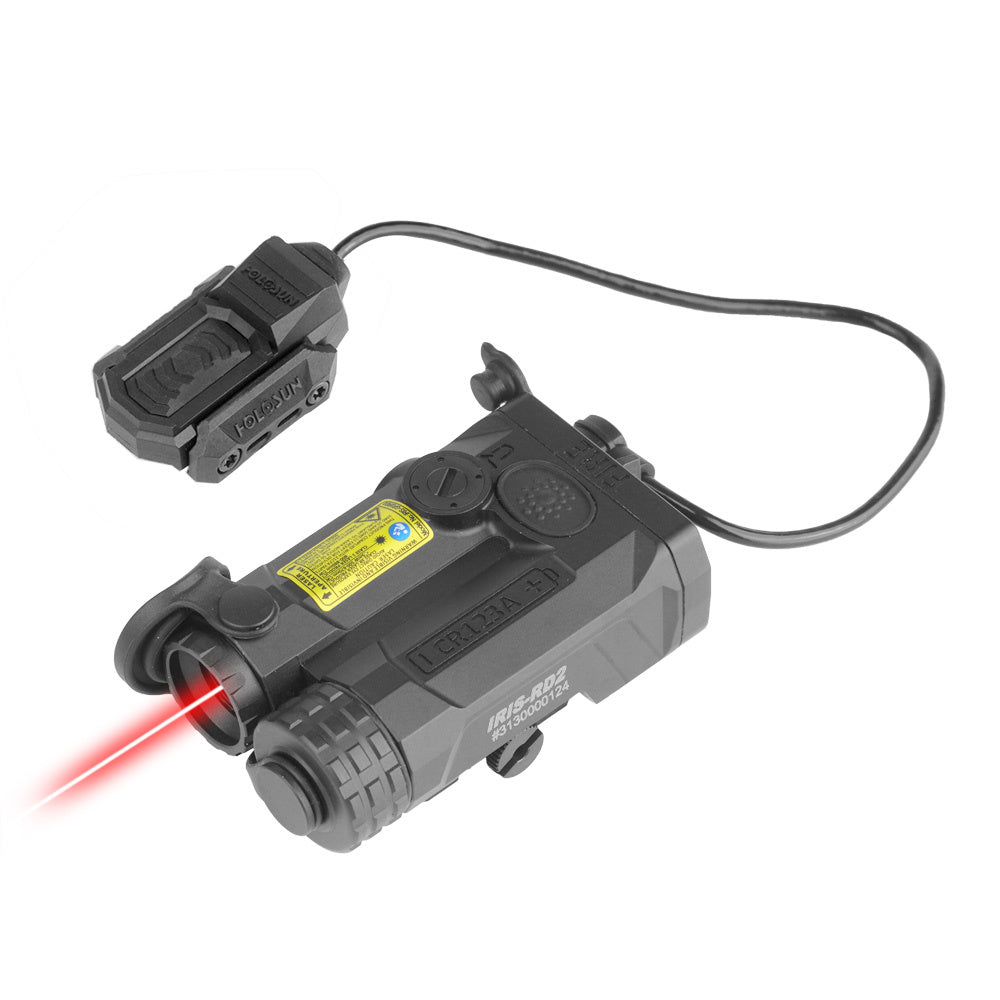

Holosun - Iris-2 Laser Target Indicator - Aluminum - Red/IR laser - Black - IRIS-RD2
The Iris laser target indicator in the form of a compact module from Holosun. It is mounted on a Picatinny rail with screw-clip jaws. The Iris module has four illumination modes with two levels of intensity. The user has a basic choice of a red laser or an IR laser, each with two power levels.
The device uses a CR123A battery for power, whose low level is indicated by a red LED. The body of the pointer is made of aluminum, where its components exposed to moisture have been sealed to meet the IPX8 standard. For precision, the user can adjust the thrown beam both vertically and horizontally.
The red laser casts a beam with a wavelength of 635 nm. An IR laser with a wavelength of 850 nm allows for operations in limited light conditions when using night vision equipment. Various night vision devices will gain additional functionality by integrating them with an additional IR indicator module.
Located in the center of the body, the gently convex button is ergonomic to use. This translates into comfortable use by both right- and left-handed users. In addition, the user receives a gel button on the cable in the package with the indicator. It allows you to place the switch in the most optimal place for each user.
The redesigned design of the device in relation to the second generation allowed to achieve a significantly lower profile and lighter weight. The mode and intensity selector is located on the back of the indicator, which can be easily manipulated with the thumb or another finger. When the emitter is not needed, the user can store or carry it in a softly padded carrying case with dedicated space for each component.
Features:
- Laser target indicator with selectable intensity and beam type
- IR beam at 850 nm and red beam at 635 nm
- Two switch-settable operating modes
- Clearly textured rubber-coated button for activation of the unit
- Compact design made of 7075-T6 aluminum
- Sealed or rubberized points exposed to moisture
- LED to indicate power status
- Picatinny rail mounting with clamp-on screw jaws
- Vertical and horizontal beam adjustment
- Powered by a single AA battery
- Sealed battery compartment with milled nut
- Rubber cap to cover emitter
- Gel tactical switch on cable
- Comes with a softly padded carrying case
| Specifications | |
|---|---|
| Laser color | IR (Infrared)Red |
| Laser wavelength | 850 nm635 nm |
| Beam power | IR: up to 0.7 mWRed: up to 5 mW |
| FDA class of laser | IR: IRed: IIIR |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Housing material | Aluminum 7075-T6 |
| Power supply | CR123A |
| Protection class | IPX8 |
| Dimensions | 81 x 47 x 33 mm |
| Weight (without batteries) | 142 g |
| Color | Black |
Kit components:
- Iris laser target indicator
- Gel switch for Picatinny rail with plug
- Microfiber cloth
- Indicator adjustment tool
- Owner's manual
- Soft padded carrying case for carrying the unit
