Holosun - Closed Collimator NV - Night Vision - OLED - 18350 - DRS-NV

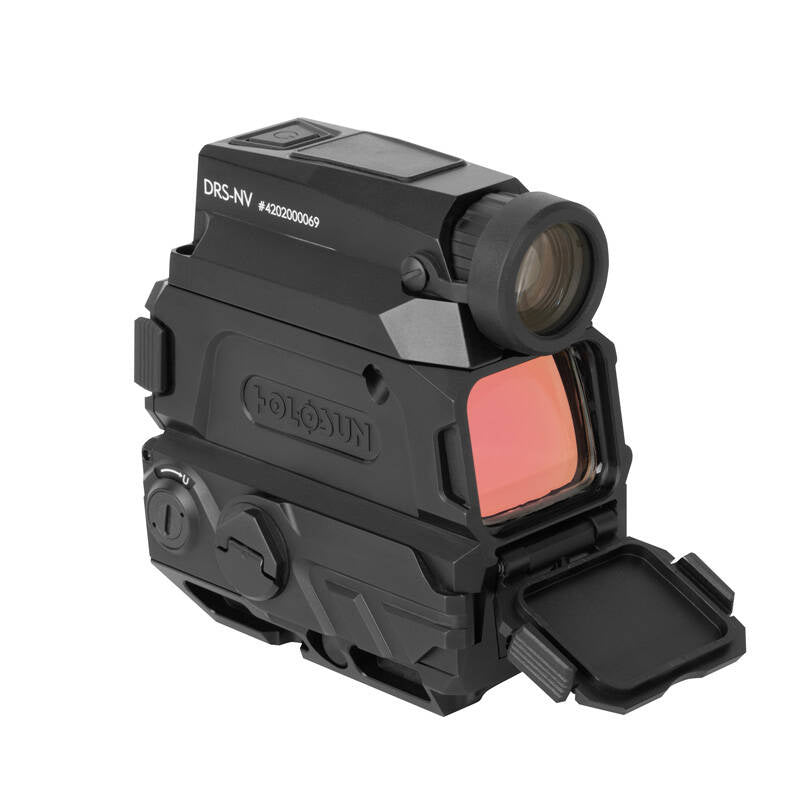

The DRS-NV collimator sight with night vision function is a highly professional and compact sight enhanced with an advanced digital night vision system. The night vision device operates in the infrared band, collecting and amplifying light waves, which are then displayed on an integrated OLED screen. Thanks to digital technology, the user has a zoom range of 1 to 8x.
Additionally, the night vision system includes internal storage and the ability to record video for later playback. The entire unit is powered by two 18350 rechargeable batteries, which are included in the kit, or two CR123 batteries. Only rechargeable batteries can be charged with the cable; using the cable with CR123 batteries may damage the device.
The weapon mount, designed to Picatinny standard, is secured by a robust bolt that can be easily operated by hand. The entire construction is made of high-quality materials, and the sight itself meets the IP67 standard. The DRS-NV collimator offers versatility and freedom of operation both day and night. In most weather conditions, the night vision can be used without problems, but in conditions of extreme darkness, it is advisable to equip the device with an IR light source.
The USB cable can also be used to view the memory contents on a computer, for example. The display image is refreshed at 60 FPS. Additionally, a single picture can be taken. The collimator itself features an advanced design, similar to the night vision device. It uses LED backlighting to display aiming points on the lens. Available points are a 2 MOA dot, a 65 MOA circle, or a combination of both.
The sight is operated with separate sets of buttons for both the collimator and night vision. The device meets the IP67 standard, meaning it will function problem-free even in demanding weather conditions. The collimator is adjusted with the included tool. Adjustment is 0.5 MOA per click within a range of +/- 50 MOA.
Features:
- Closed collimator sight with night vision
- Compact case, allows you to easily carry the sight in any military backpack
- Versatility and freedom of operation both during the day and at night
- 3 aiming points - 2 MOA dot, 65 MOA circle or a combination of both
- Adjustable by 0.5 MOA over a range of +/- 50 MOA
- LED beam projected onto the lens
- Night vision with digital zoom system
- FHD sensor resolution and OLED display
- 60 FPS operating frequency
- Ability to record and take pictures
- 24 GB internal memory
- Powered by two 18350 rechargeable batteries or two CR123 batteries
- Charging and data transfer via magnetic USB cable
- Robust Picatinny rail mounting
- IP67 waterproof rating
- 12 viewfinder brightness levels - 8 for daylight mode and 4 for night vision mode
| Technical data | |
|---|---|
| Dimensions | 87 x 48 x 92 mm |
| Aiming points | Dot 2 MOA Circle 65 MOA Dot 2 MOA + Circle 65 MOA |
| Brightness settings | 8 for daylight mode 4 for night vision mode |
| Digital magnification | 1x 2x 4x 8x |
| Mounting | Picatinny |
| Adjustment | 0.5 MOA on click |
| Range of adjustment | 50 MOA |
| Power supply | 2x 18350 2x CR123 |
| Protection class | IP67 |
| NV sensor resolution | 1920 x 1080 |
| Display resolution | 1024 x 768 |
| Display | OLED |
| Refresh rate | 60 FPS |
| Internal memory | 24 GB |
| Weight of the viewfinder | 478 g |
| Weight of batteries | 48 g |
Kit components:
- DRS-NV night vision sealed collimator
- 2x Rechargeable 18350 battery
- USB magnetic cable
- Collimator adjustment tool
- User manual
- Soft padded carrying case for carrying the sight
