Hop-Up chamber for Tac-41 Silverback GBB replicas

Hop-Up chamber for Tac-41 Silverback replicas

The CNC chamber has been designed to work with GBB internal barrels and GBB hop-up elastics

The TDC Hop-Up allows for much more precise adjustment of the pressure adjustment (50 clicks - 15 µm per click) of the spacer arm. The chamber has been designed to completely negate the phenomenon of double ball loading, a GBB 60° flat type hop-up rubber is included. The chamber is compatible with barrels from different companies. To do so, the barrel must be mounted with a clip or with screws M3X6 (3 pieces).

Because of the different positioning of the inner barrel in the chamber, the chamber will require a 3 mm shorter barrel than the AEG hop-up.
Example: a 510 mm long barrel will require a 507 mm long BB inner barrel. etc.

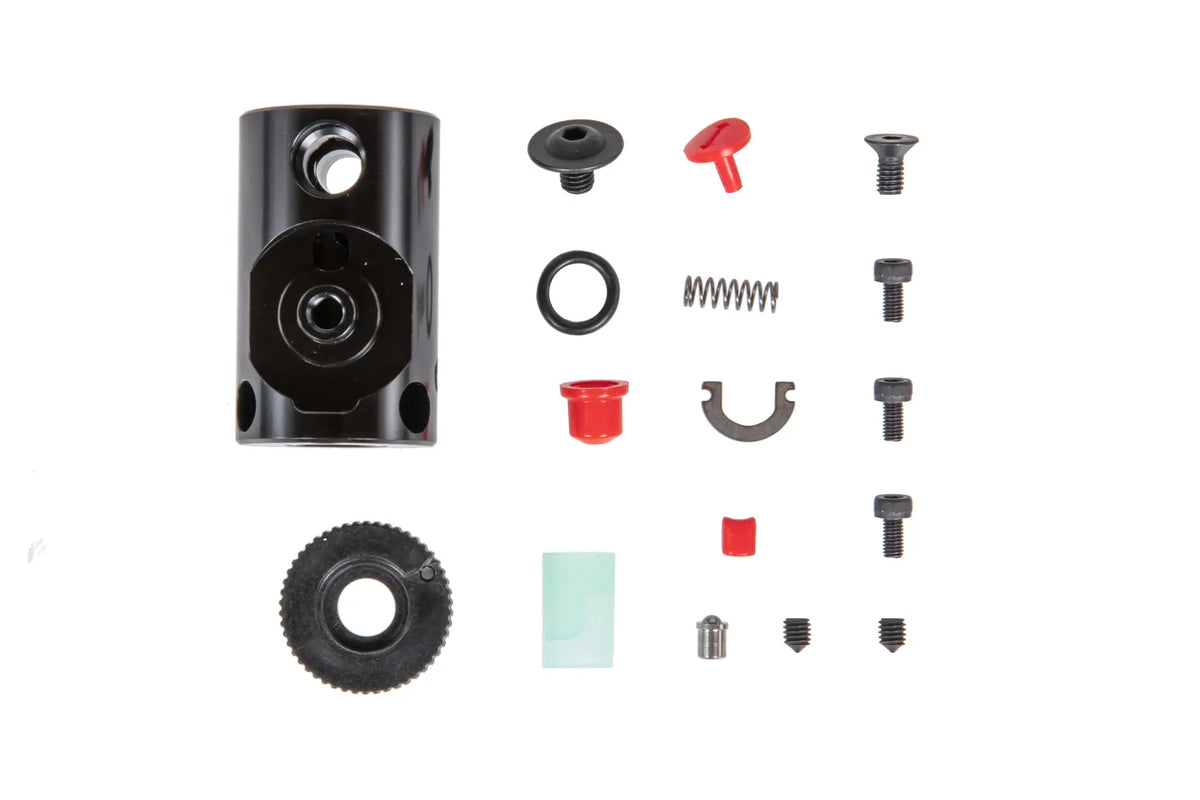

Set contents:
-Set of screws
-Barrel clip
-Hop-up chamber body CNC
-Hop-up rubber socket CNC
-Distinguisher
-Feeder
-Feeder guide
-Pressure adjustment knob
-Spring
-Oring 8x2 (1 pc.)
-GBB flat 60°
-4 mm ball plunger
