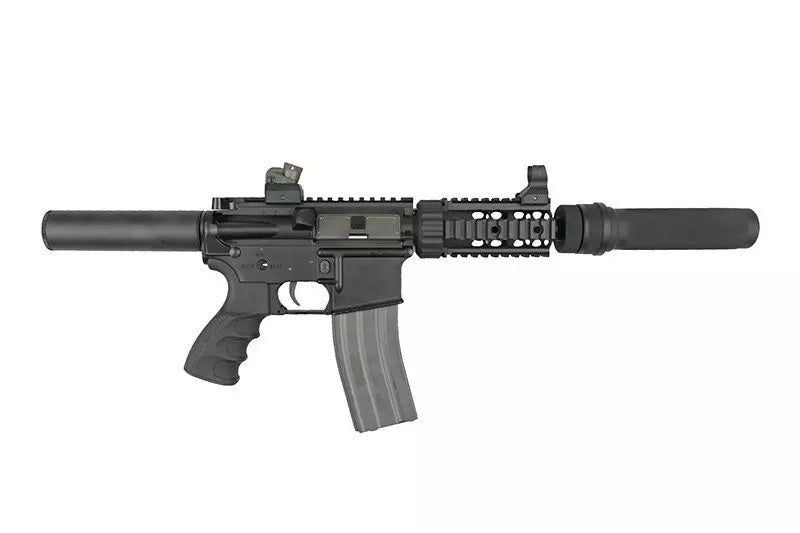

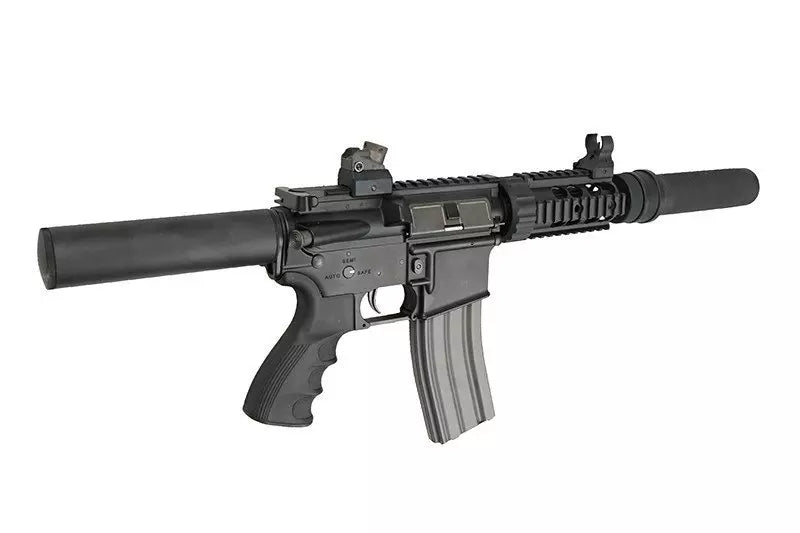

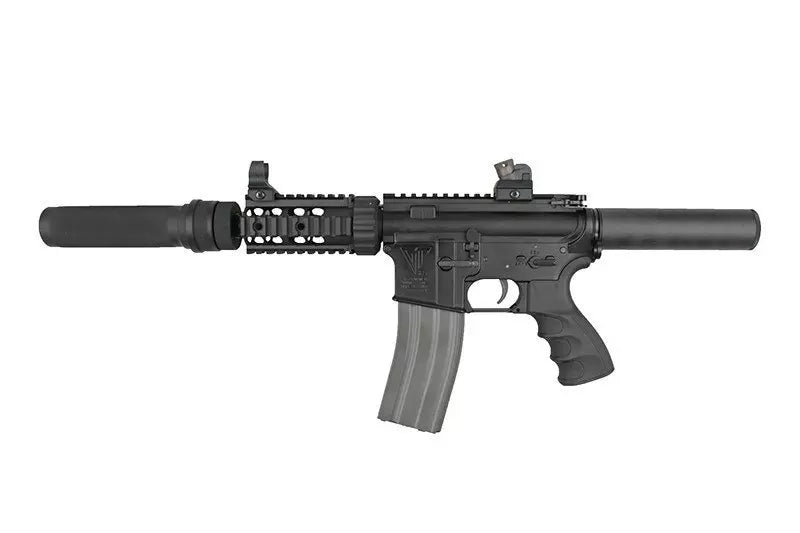

TR16 CRW Carbine Replica

TR16 CRW Cannon DST Carbine Replica

The TR16 series carbine replica by G&G was created as part of the Top Tech line - which means the highest class and the highest quality. The replica i mostly made out of metal and plastic. The length of the stock is adjustable, which allowes it to be adjusted the to operator’s needs.

The firing selector is located on the left side of the body and is marked with graphical descriptions of the firing modes. The replica is equipped with the PBB system, which perfectly imitates the the real firearm counterpart. It sets the bolt in motion and gives the replica a noticeable "kick" effect in the operators shoulder. After pulling back the charging handle, the shell ejector cover opens, and the imitation bolt moves back to the rear position. This allows for hop-up adjustment. What’s interesting here is the the bolt forwarder also plays an important role here: after pressing it, the anti-return latch in the gearbox is released, thanks to which the main spring is released. This significantly extends the life of the replica, allowing you to maintain a high muzzle velocity by minimizing the effects of spring wear.

The replica was made in tan color, the outer barrel, stock, sights and small elements such as switches remain black. The designers set themselves the task of creating a replica that would be ideally suited for short and medium range operations, e.g. with the CQB specificity, and all thanks to its compact design and dimensions similar to submachine gun replicas, the replica has an ergonomic, profiled pistol grip. In order to "slim down" the replica, the stock has been greatly simplified. It has the form of a metal tube, inside which we install the battery, after removing the nut on the thread.

The CRW Cannon has an effective, large-sized integral silencer which, when installed, forms a compact unit with the front grip. The set also includes a set of adjustable, mechanical HK sights, mounted on a RIS rail.

Thanks to the mounting rails located on the top of the body and on the four sides of the front grip, we can equip the rifle with a range of additional accessories, from optical sights, through grips and tactical lighting, to laser target markers.

The applied M120 spring provides a muzzle velocity of ~ 395 FPS. There is a sealed pneumatic system inside, equipped with a high-class chamber and a HU bucking.

The rifle uses the phenomenal BlowBack system, which adds additional realism to the use of the replica and provides the user with more immersion. Pneumatic Blow Back works by discharging some of the compressed air from the gearbox to a special cylinder located above its frame. The piston located in the PBB cylinder moves a thin plate imitating a lock attached to it.

NOTE: the manufacturer does not recommend using batteries stronger than 8.4V due to the possibility of damaging the above-mentioned gills.

G&G replicas with the PBB system have a reinforced, modified V2 gearbox. The modifications consist in adapting it to the PBB system and adding an "active spring release" in the form of a bolt forward button.

The gearbox is equipped with 8 mm ball bearings, a brass cylinder head and an aluminum piston head.

The set includes:

- replica - magazine
